PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine

Get your hands on our top-quality PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine. We are a trusted factory for all your packaging needs."
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Pillow packing machine
Forming Function
Forming
Driven Type
Electric
Material Type
Grain
Packaging
Bag
Packaging Material
OPP/CPP, OPP/CE, Mst/PE/Pet/PE
Weight
350kg
Transport Package
Wooden Standard
Specification
3000mm*1150mm*1700mm
Trademark
ZK
Origin
China
Production Capacity
10000pieces/Year

Product Description

  •
  •
  •
  •
D escription

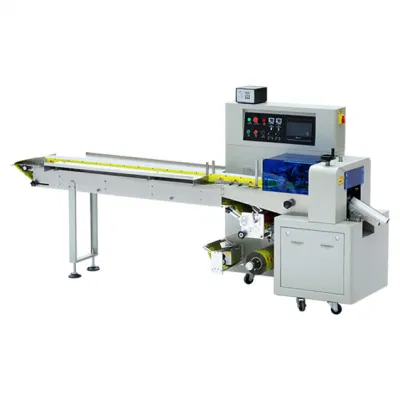

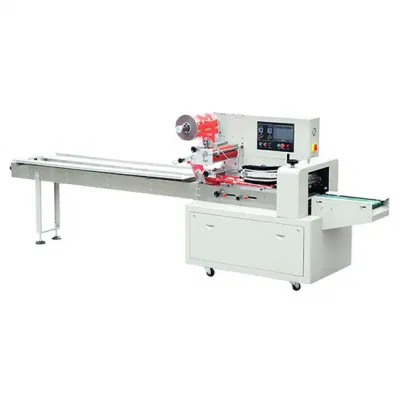

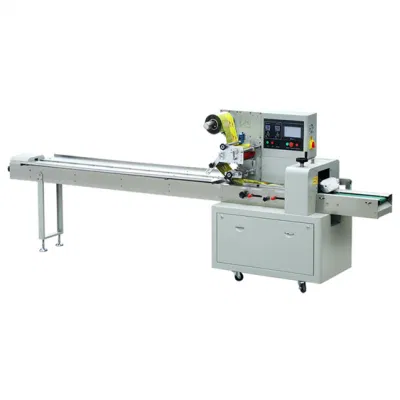

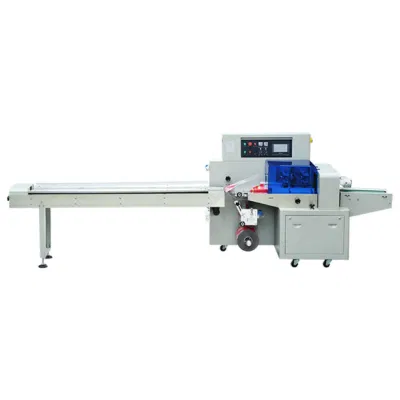

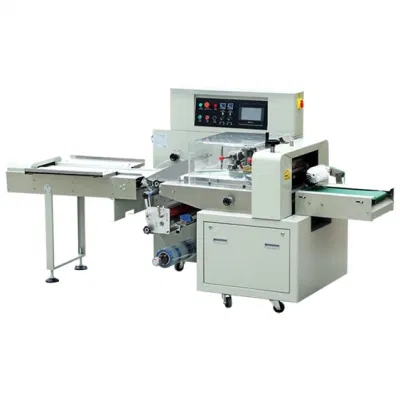

High quality automatic horizontal pillow type flow  packing machine

We supply soap flow packing machine more than 8 years. One Year Warranty and long time sell-service .We have been specialized in designing and producing new packing machines, already obtained 20 Chinese patents. With professional international sales team, we are expecting to become your long-term partner in China.

Product introduction of High quality automatic horizontal pillow type flow packing machine:
Automatic flow wrapper with 3 servo motors. The packing speed is up to 300 bags in one minute. Good quality and competitive price make our products are hot sell in our domestic and oversea markets.
Horizontal Packing Machines Parameters
Model SS-300XS SS-350XS SS-450XS SS-450XWS SS-500XS SS-680XWS
Width of film ≤300mm ≤300mm ≤450mm ≤450mm ≤500mm ≤680mm
Thickness of film bobbin 30-75um 30-75um 30-75um 30-75um 30-75um 30-75um
Dimension of film roll

outer diameter≤

300mm,inner diameter≤75mm

outer diameter≤

300mm,inner diameter≤75mm

outer diameter≤

300mm, inner diameter≤75mm

outer diameter≤

300mm, inner diameter≤75mm

outer diameter≤

300mm, inner diameter≤75mm

outer diameter≤

300mm, inner diameter≤75mm

Single blade bag size

(70-6000)*

(50-140)*

(3-60)mm

(L*W*H)

(70-6000)*

(50-140)*

(3-60)mm

(L*W*H)

(100-6000)*

(80-215)*(

10-65)mm

(L*W*H)

(100-6000)*

(80-215)*

(10-90)mm

(L*W*H)

(100-6000)*

(80-240)*

(10-80)mm

(L*W*H)

(80-6000)*

(50-320)*

(3-140)mm

(L*W*H)

Single blade packing speed 10-100bags/min 10-100bags/min 10-80bags/min 10-80bags/min 10-100bags/min 10-40bags/min
Double blade bag size (60-6000)*(50-140)*(3-55)mm(L*W*H) (60-6000)*(50-140)*(3-60)mm(L*W*H) NA NA NA NA
Double blade packing speed 20-200bags/min 20-200bags/min 20-200bags/min NA NA NA
Power requirement

220V,50HZ,

3.8KW

220V,50HZ,

3.8KW

220V,50HZ,

4.6KW

220V,50HZ,

5.5KW

220V,50HZ,

4.6KW

220V,50HZ,

5.7KW

Machine size

3900*850*

1500mm

3900*850*

1500mm

4100*1050*

1580mm

4100*1050*

1580mm

4100*1050*

1600mm

5000*1200*

1650mm

Machine Weight 600kg 600kg 900kg 960kg 810kg 920kg
Motor configuration servo servo servo servo servo servo
Film running way from top from top from top from top from top from top
Cuting ways rotary cut rotary cut rotary cut

rotary

/reciprocation

rotary

rotary

/reciprocation

Sealing back seal back seal back seal back seal back seal back seal
Remark: Any other customized sizes request, please contact us
PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine
Our company
PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine
PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine
Packing & Delivery
PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine
PLC Control Date Ball Protein Bar Automatic Horizontal Wrapper Pillow Packing Machine Cookie Cake Flow Wrapping Machine

















FAQ:
Q1:Are you factory or trading company?
A: We are factory and manufacturer.

Q2: Where is your factory located? How can I visit your factory?
A: We are located in Qingdao. It is about 4 hours to reach Ningbo or Shanghai port from our factory in China.

Q3:How to place my order?
A: Just contact us via Trade Manager, E-mail, Skype or telephone to confirm the machines, making the deposit then we will start production.

Q4 : What is the payment term?
A: 50% TT in advance, 50% TT before delivery after production

Q5:How long is the production time?
A: About 10 working days.
Q6: First time import, how can I believe that you would send product ?
A: We are verified company by made-in-China.com to make transaction successful.
Q7: How to ensure that I received the machine undamaged?
A: Firstly, our package is standard for shipment, we must confirm machines undamaged before delivery, and we've bought insurance for you, we will take the responsibility if machines damaged.
Q8: What after-sales service or any question about products?
A: All machines enjoy 2 years warranty , you can contact me by mail if any problems, I will reply you as soon as possible.
