Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine

Introducing our multi-function spout pouch packing machine. Perfect for filling sauce, mayonnaise, detergent, jam, and liquid products. We are a factory with a wide range of packaging solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MR8-200R/300R
Forming Function
Filling, Seal
Driven Type
Mechanical
Material Type
Grain, Solid,Powder,Liquid,Paste,Sauce
Packaging
Bag
Packaging Material
Plastic
Material
SS304
Work Statin
8
Transport Package
Wooden Box
Specification
2460*1830*1460
Trademark
Lin-Pack
Origin
China
HS Code
8422400090
Production Capacity
1200sets/Year

Product Description

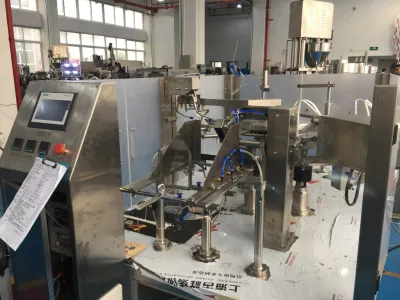

Lin-pack Automatic Liquid Paste Sauce Pouch Filling Food Packaging Packing Machine
Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine
Machine General Properties: The system is designed for handling premade pouches (flat , stand-up , zipper pouches etc ), stored in a magazine , picks up an empty pouch, transfer into grippers, opens the pouch, fills with product, heat seals then discharges the product.

Technical Parameter:

Model MR8-200RH MR8-200R MR8-300R
Pouch Type

 Four-side seal bags, stand-up pouches with or without spout, zipper bags, three-side seal bags, paper bags, etc.

Bag Size

W:50-200 mm , L:100-350mm

W:50-200 mm , L:100-350mm W:50-200 mm , L:100-350mm
Max. Filling  2000g 2000g 2500g
Max. Speed  60 bags/min 60 bags/min 45 bags/min
Power  4kw 4kw 4kw
Dimension  2200×1550×1410 2200×1550×1450 2450×1750×1450
Weight 1500kg 1500kg 1700kg
Air consumption ≥0.6m3/min

We can customize the suitable one for you according to your requirement.
Just Tell us : Weight or Bag Size required.

Features :
1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

2) The speed of the machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..


4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.


Safety Measures:
1.no bag feeding, no filling and no sealing.
2.no bag opening/open error, no filling and no sealing
3.Machine alarm and stop when inadequate air pressure.
4..Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine
 Applications :
Liquid/paste type: Liquid Detergent, Fruit Juice, Tomato Sauce, Chili sauce, bean pasteSoup ,Peanut Butter, Jam, mayonnaise,coconut milk , etc.

Suitable Pouch Type: Various bag types are available,  Heat sealable performed side seal bags, 4 side seal , zip-lock ,stand-up pouch with or without spout,paper bag.
Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine

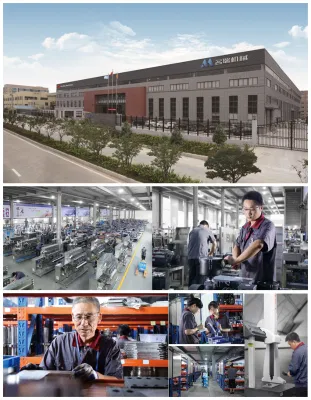

COMPANY INFORMATION
Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine

 5 INVENTION PATENTS & 58 UTILITY PATENTS

Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine
Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine


WITH CUSTOMERS

Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing MachineManufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine
Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine

OUR SERVICE / WHY CHOOSE US?

The machine can be remote controlled after it connect the Ethernet ,. If any problems with the machine/programming,we can connect the machine and check the problem in our factory directly. It Improves the after-sales service efficiency.
Manufacture Multi-Function Filling Sauce Mayonnaise Detergent Paste Spout Pouch Packaging Jam Liquid Packing Machine

1.One Year Warranty, As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,  Don't worry about the parts damaged or not sell after the machine is sold. we have a field factory with hundreds of employees to serve you.
3.Engineer Assignment, Lifelong maintenance.
4.Online Instruction,We open online services,our engineers will be the first time for a one-to-one troubleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.


FAQ

QHow can I know your machine is designed for my product?
AYou can Send us product samples and Have a test on our Machine


QDo you test all your goods before delivery?
AYes,we have 100% test before delivery,and if you need,we can record a video about the test process of machine to you.


QDo you have any technical supports?
AYes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.


QHow can I know the machinery quality before shipping?
AWe will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.
