Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost

Product Name: CompactVac Food Packing Machine Description: Get a Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine to Save Space and Cost. We are a factory specializing in compact packaging solutions.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Our Advantages
  • Product Parameters
  • After Sales Service
  • FAQ
  • Company Profile
Overview

Basic Info.

Model NO.
DZ-420R-MA
Forming Function
Forming, Filling, Seal
Driven Type
Pneumatic
Material Type
Solid
Packaging
Bag
Packaging Material
Film
Machine Material
Qualit 304 Stainless Steel
Packing Material
Plastic Film Foil, Medical Film, Tyvek Film
Capacity
6-8 Cycles Per Minute
Packing Products
Gauze, Syringes, Gown, Medical Consumable
Feature
High Speed, Sterile Packing
Power Consumption
18-25kw
Transport Package
20′′ Container
Specification
CE/ISO9001: 2015
Trademark
Utien Pack
Origin
China
HS Code
84224000
Production Capacity
50 Pieces/Year

Product Description



Product Description

Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost



Medical Thermoforming Packaging Machine-compact series:

Utien's medical thermoformer provides efficient processing of flexible, semi-rigid, and rigid films.
It is capable to do the whole process from packaging forming, sealing, cutting to final output. It's also optional to do date printing or auto labeling.

It's been widely applied to pack medical and lab supply, such as syringes, gauzes, saline bags, protective clothes, testing kits, medical masks, swabs, and more.



Application:
meat, sausage, smallgoods, fresh frozen seafood in portions or fillets. bakery, snacks and  more.

Feature of compact series:
-Compact design, around 3.5m in length
-Easy maintenance
-Flexible capacity



Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost

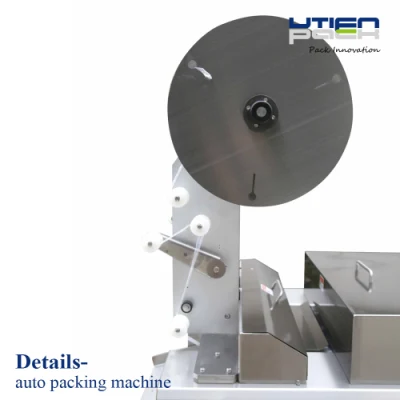

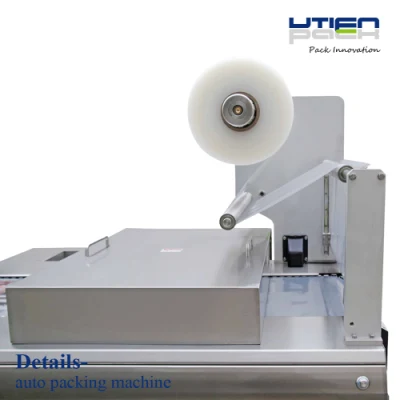

Details
Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost
Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost

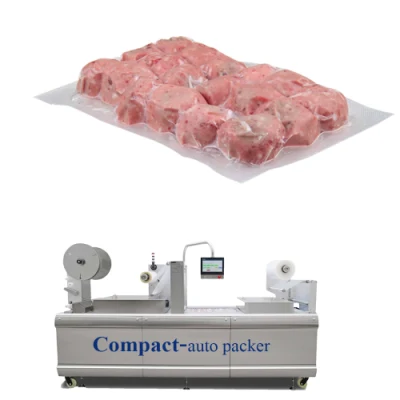

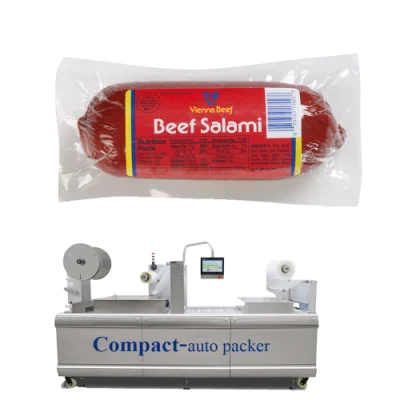

More application

Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost
Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost
Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost
 Less than 4m food fill seal vacuum thermoform  packing machine ,save space save cost

Our Advantages

1) Perfect packaging

Flexible vacuum packaging is the most economic auto packaging option on the market. The package shape and size can be customized per the products

2)
Sterile packaging

The clean package is of high hygiene. It protects the products inside from bacteria and cross-contamination.



3) Cost-effective
Each package is sealed using only the necessary amount of film, resulting in 40 percent less material than  traditional wrapping packaging


4) Easy operation
By finger touch on PLC screen,you can easily control the whole machine


5) Reliable quality
Spare parts of international top brands, and experience workman


6) Flexible design
The package shape, column, packaging speed can all be customized

Compact hygenic medical grade auto thermoform packing machine,package pharmcautical  supplies

Product Parameters

Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost

Machine details:


Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost

TOP SAFETY

Safety is our top concern in machine design. To ensure the security of workers and machines, many sensors are installed under the cover, inside the door and other removable parts to make sure the machine can auto-stop while the covers and doors are open.







HIGH AUTOMATION

The machine is fully automatic from package forming to final product output. And it can be fully controlled by 10'' PLC touch screen.
Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost
Less Than 4m Food Fill Seal Vacuum Thermoform Packing Machine, Save Space Save Cost

INDIVIDUAL DESIGN

We have a team of engineers to design every machine detail for customers' satisfaction. Also, we're capable to apply other third-party equipment to make a better auto packaging line.


Technical data for reference

Machine Parameters
Speed 6-8Cycles/min
Forming Depth ≤50mm
Film widths ≤520mm
Advance Length ≤500mm
Bottom Film
Material Sealable PE/PA Multi-layer Co-extruded Plastic Film
Print Unprinted Color Bottom Film or Transparent Film
Roll Diameter 500mm
Thickness ≥300um
Top Film
Material Sealable PE/PA Multi-layer Co-extruded Plastic Film
Print Pre-printed Top Film or Transparent Top Film
Roll Diameter 250mm at most
Thickness ≤200um
Components
Vacuum Pump BUSCH(Germany)
Electrical Components Scheneider(French)
Pneumatic Components SMC(Japanese)
PLC Touch Screen & Servo Motor DELTA(Taiwan)
Machine Parameters
Dimensions 6000mm×1100mm×1900mm
Weight 2000kg
Working Height 1000mm
Loading Area Length 2000mm(Customizable)

The parameter in this sheet is for reference only, some of the data may be different with different case.


Less than 4m food fill seal vacuum thermoform  packing machine ,save space save cost

After Sales Service

1. WARRANTY
1) The whole machine has 12 months warranty exclude wearable parts such as silicone plate, film, heating elements and so on.
2) Special overseas engineering service is not included in the warranty.
3) Other items or service require can be negotiated.


2. Information
1) We offer information about packages and machinery before making a special offer.
2) We have multiple after-sale services include online guiding, engineering service, install & tuning service, and so on.


3. Design
1) We can provide package design service at the request of the customer.
2) We can customize machine function, appearance, and special requests within a reasonable range.
3) We can make a certain design of the package under request.


Less than 4m food fill seal vacuum thermoform  packing machine ,save space save cost

FAQ

Q1: How long does it take to deliver the machine after the order & deposit?

A1: Usually it will take 90 working days to manufacture the machine and make it ready to deliver. At the first 30 days, the technical drawing will be made. The second 30 days start manufacturing the parts and ready to assemble. In the last 30 days, the machine will be assembled and tuned to make sure it is ready to deliver.



Q2: What do you need to make a specific offer for my product?

A2: To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project.



Q3: Can you offer oversea service?

A3: Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange an engineer to go to your factory personally to solve the issue.

Less than 4m food fill seal vacuum thermoform  packing machine ,save space save cost
