Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

Looking for a reliable packaging machine for your liquid, ice candy, juice, or popsicle products? Our factory offers the Hot Selling 50ml 100ml Bag Liquid/Ice candy/Juice/Popsicle/Ice Lolly/Ice Pop Packaging Packing Machine. Get in touch with us today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Certifications
  • Company Profile
  • Packaging & Shipping
  • FAQ
  • After Sales Service
Overview

Basic Info.

Model NO.
MG-440
Forming Function
Forming, Filling, Seal
Driven Type
Pneumatic
Material Type
Liquid
Packaging
Bag
Packaging Material
Film
Pouch Length
50~280mm
Pouch Width
50~210mm
Packing Speed
10~145 Bags/Min
Filling Capacity
10-1000 Grams
Applicable Film
Pet/Al/PE Pet/PE Ny/Al/PE Ny/PE
Max Film Width
440mm
Electric Power
220V50Hz
Total Power
3.6 Kw
G.M
350kg
Package Size
966X1405X1318 mm (L*W*H)
Roll Film Spec
Thickness: 0.05-0.15mm Diameter: Max:300mm
Bag Style
Back Sealing(Flow Bag);Three/Four Side Sealing
Shape
Liquid Paste
Time
10 Days
Compressed Air Consumption
6-8 Kg/M2~ 0.3 M3/Min
Transport Package
Plywood Case Packaged
Specification
440mm Film Width
Trademark
MOTECH
Origin
Shanghai China
HS Code
8422309090
Production Capacity
1000pieces/Year

Product Description

SME Liquid Paste packing machine 100ml;500ml;1000ml is suitable for Ice lolly, Water ,Fruit Juice, Strawberry Jam ,Chocolate Jam, Ketchup,Chili Sauce , Pepper Sauce, Beef Sauce, Peanut Butter, Vinegar , Cooking Oil, Salad Dress, Shampoo, Olive Oil, Soy Sauce, Lotion, Shampoo, Mayonnaise , etc,

Product Description

Automatic Liquid Paste packaging machine features:
1.Automatic Liquid Paste  packing machine can finish the process like conveying bag,bag making,filling,weighing,sealing,cutting,counting,lot number,etc.

2.Bilingual display screen control system,stainless steel cabinet.Set up the required data(include filling,weighing,bag size,etc) in the visuable settings,the control system automatic optimization match with all the program so that achieve the best packing speed precisely.

3.Stepper Motor control,this system has the advantage of precise,needless to adjust the other parts.

4.It has color system controller,so that can get the complete trade mark design.

5.Suitable for the complex film and tin foil and other packing material.Fine packaging performance,low noise,clear sealing texture and strong sealing performance.

6.PLC control,customize details according customer's requirement



According to customer needs,the bag types can be changed:Back Side Seal,Three Side Seal , Four  Side Seal , Special Shape bag .



1.The whole body made of 304 stainless steel. Strictly made as per CE and SGS certification demands.

2.All machines are equipped with a protective cover to avoid unnecessary damage during use. Compliance with EU safety certification requirements

3.Optional English or other languages screen display, easy and simple operation.

4.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.

5.The machine integrate Bag-making, filling, sealing, cutting, counting can be achieved automatically and straightly.

6.Bag length and packing speed is adjustable on the Touch screen, The bag width is adjustable by changing bag mold .



Product Parameters



Machine model MG-440 MG-360
Bag shape pillow bag/stick sachet /Back Sealing                                     /3 side sealing/4 side sealing
Packing speed 10-45bags/min 10-60bags/min
packing capacity 10-1000g/bag 0.5-500g/bag
Roll thickness 0.05-0.15mm
Roll diameter Max:300mm
Roll width 30-440mm 30-360mm
Bag width 50-210mm 30-180mm
Bag length 50-280mm 30-250mm
Powder 220V/50HZ/3.6KW 220V/50HZ/2.5KW


Optional device:

Gusset device Nitrogen charging device
Chain bag Vibrating device
Punching device Sealing device
Exhaust/Inflatalbe devices Easy tear device
PE film sealing  Bag support device
Anti-Static electricity Evacuating device
Horizontal seal cooling blowing device  Film rectify deviation adjust device

Detailed Configuration

Spare Parts Name                    Brand                Model

Pull Film Motor                     Yankong              YK86HB80-04A

Driver                             Yankong             YKA2608MC

Push Film Motor                     Taili                3GN-18K

Horizontal Sealing Cylinder            Delixi               SDA-50*50

Vertical Sealing Cylinder               Delixi              SDA-40*25

Solenoid Valve                       Delixi              4V210-08

Oil water seperator                    Delixi             BFC-3000

HMI( Touch Screen)                   SIEMENS         SMART700IEV3

PLC                                SIEMENS         ST-20

Circuit Breaker                       Delixi             OSMC32N2C16

Intermediate relay                     Delixi             RXM2LB2BD

Solid Relay                          YANGMING       SSR-25DA

Power Supply                        Meanwell          NES-100-24

Proximity Switch                     YANGMING       PS7-5DP

Thermostat Switch                    Autonics           TCN4S-24R

Tracking  Photoelectricity Sensor        Yatai             KS-WG22

Starting Button                       Tianyi            LA42P-10/G

Stop Button                          Tianyi           LA42P-10/R

Emergency Stop Button                 Tianyi           LA42J-01/R


Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine



Please tell us about your bag size and we can match the suitable machine for you.

Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

Scope of application:
Suitable for  automatic packaging of liquid of foods, medicine and chemicals,such as pesticide,shampoo,body foam bath lotion, facial cream, ingredient oil, fruit sauce,tomato ketchup and honey shower gel, skin lotion, toothpaste, cosmetic cream, fruit jam, edible oil, soy etc

Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine



Auxi Product:
Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine



Detailed Photos

MACHINE DETAILS
Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine
Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing MachineHot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine
Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing MachineHot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing MachineHot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing MachineHot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

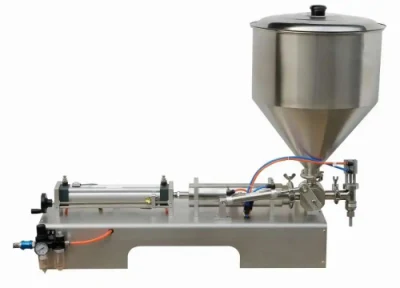

Filling Pump
Filling Pump high precision +_2% ,Weighter can be adjusted.
#304 stainless steel measurement parts will measure the weight of each bag automatically.
Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine



Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

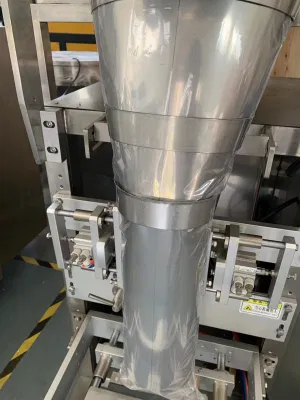

Bag Former
Articulated bag former structure, high speed of accuracy and clean cutting, sealing bags.
#304 stainless steel bag former is for shaping the film into a bag.
Different bag width needs different bag former.

Date printer
Date printer is available to be equipped on this machine for printing production date on bags

Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine



Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

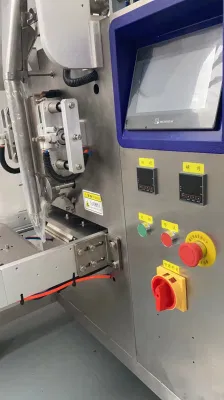

Touch Screen
The display screen is super sensitive and intelligent, and can be used for various debugging of bag making.

Language: Standard English and Chinese. Any language can be customized.

PLC: Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient and easier




Certifications

Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine
Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine



Company Profile

About US:

SME is a leading manufacturer in the field of front-of-line packaging devices since
2008. In the past 13 years, MOTECH has targeted on the technology development, precise manufacturing, professional marketing, satisfied technical support and OEM solutions. We offer Flow Packing Machine;Vertical Packing Machine;Metal Detector;Weight Checker  and Weighter to fit the needs of different industries.


Due to continuous efforts in the field of end-of-line packaging devices, MOTECH  Machinery was honored to obtain CE certificate and ISO 9001 certificate showed our emphasis on safety ,quality and has a successful sale in Asia, American, Africa and so on. MOTECH looks forward to establishing a long-term and mutual beneficial partnership with more agents or distributors all over the world. Moreover, We provide the OEM solution based on strict quality control for famous companies in Japan, USA etc.

In the future, MOTECH Machinery will keep to provide customers:
-Quality machines
-Competitive price
-Satisfied service

Our Team:
Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine
Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine


Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing MachineHot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

Packaging & Shipping

Exports of Wood Packaging. The list of countries requiring written statements and/or proof on the exterior of wood packaging fluctuates


Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine


Export Record

Hot Selling Factory Supply 50ml 100ml Bag Liquid /Ice Candy /Juice /Popsicle /Ice Lolly /Ice Pop Packaging Packing Machine

FAQ

FAQ

Q1: How should I choose the right VFFS packing machine?
Answer: We will recommend suitable models and configurations based on your product characteristics, size, and package type. Normally, volumetric cup filler or multi-head weigher are optional for granular, block, and flake materials; linear weigher or auger scale for powder; liquid pump for different kind of liquid. For different packaging bag types, such as pillow bags, three-side seal bags, four-side seal bags, pre-made bags, etc., we also have different models to meet your needs.

Q2: I'm worried that I don't know how to operate your machine
Answer: Do not worry. Our pouch packing machine is servo controlled, which greatly simplifies the difficulty of operation and commissioning. Most of the daily operation of the machine can be conducted by a few start-stop buttons and HMI. If you have different products or packages that need to be changed, we can provide instructional videos to give you step-by-step tutorial. Also, the HMI has memory function, which is convenient for you to reload the settings in the future.

Q3: If I buy your automatic packing machine, what technical support can I get?
Answer: Whether buying a food packing machine or a grocery packing machine, we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance. For some big project with custom-made packing machine, our professional after-sales technicians can also provide on-site installation and commissioning services as per request (buyer should bear the cost for the service).

Q4: How do we build trust in the first business?
Answer: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the high quality packing machine you need is ready before shipment.

Q5:How can I find the custom packing machine I need?
Answer: We will fully communicate of the information of your products, packaging scheme, and feeding method. We have nearly 12 years of experience as a packing machine factory and can provide you with similar case videos for your reference. If necessary, we will ask you for samples of products and packing films for testing, in order to find the most suitable and cost-effective solution for you.



After Sales Service

Our service:


  1. Professional and experienced after sales team for field installation & maintenance service.
  2. Proficient English communication.
  3. 24 hours Online service
  4. Remote diagnose & resolve problem.
  5. Sufficient spare parts supply.
  6. One-year warranty of machine.
