Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid

Get efficient and reliable Bagasse Dinner Pancake Packaging Plate with Leakage Proof Disposable Lid with our Fully Automatic Thermoform Machine. As a factory, we ensure top-quality production.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Product Display
  • Company Profile
  • Certificate
  • Exhibition
  • Transport Packaging
  • FAQ
Overview

Basic Info.

Model NO.
TTF-700A
Maximum Forming Area
700mm*600mm
Usage
Production of Plastic Products
Machine Name
Plastic Thermoforming Machine
PLC
Touch Screen Control
Keyword
Bagasse Dinner Plate Thermoforming Package
Motor
Servo Motor
Applicable Sheet
PP, HIPS, PS, Pet, PVC, etc.
Need to Install Several Molds
2 Pairs
Process
Forming-Cutting-Stacking
Power Supply
AC 380V, 50Hz Three-Phase and Four-Wire
Transport Package
Wood Packaging
Specification
13000*4700*2750mm
Trademark
LITAI MACHINERY
Origin
Zhejiang, China
HS Code
8477409000
Production Capacity
5set/Mouths

Product Description


Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid
Product Parameters
Technical Parameters
Station Four stations Three station Four stations Three station
Model TTF-700AF TTF-700A TTF-520AF TTF-520A
Forming Area 700mm x 600 mm 520mm x 400 mm
Forming Depth (Max.) 135mm 110mm
Sheet thickness 0.2-2.0mm
Forming Speed (Max.) 30times/min 30times/min
Air pressure    0.6-0.8mpa
Air consumption    3.6 m³/min 3.0 m³/min
Water consumption    0.8 m³/h 0.7 m³/h
Sheet width (Max.)  730mm 550mm
Suitable Sheet  PP, PS, HIPS, PET, PVC, PLA etc.
Power supply  AC 380V, 50Hz, Three-phase, Four-wire
Used power 105Kw 95Kw 55Kw 50Kw
Rated power  210Kw  190kw 110Kw 100Kw
Heating power  118Kw 75Kw
Procedure  Forming-punching-cutting-stacking  Forming-cutting-stacking Forming-punching-cutting-stacking Forming-cutting-stacking
Dimension  L14000*W4700*H2750mm  L13000*W4700*H2750mm L11000*W4600*H2700mm L9700*W4600*H2700mm
Weight  About 25.0T  About 19.0T About 11.0T About 9.0T

Main Electrical Components
MODEL/PARTS TTF520A/AF TTF700A/AF
Filter CKD(Japan)
Forming Valve NORGER(UK)
Touch Screen DELTA KUNLUN TONGTAI
Proximity Switch ROCKWELL(USA)
Temperature Control Module WEST(UK)
AC Contactor/Circuit Breaker/Button SCHNEIDER(France)
Intermediate Relay IDEC(Japan)
Intermediate Relay Base OMRON(Japan)
PLC/Servo Motor DELTA(Taiwan)
Safety Door - Panasonic(Japan)
Sheet Sagging Detection - Sick(Germany)

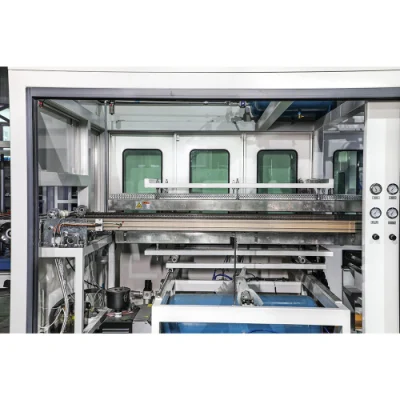

Product Display
Application:
TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, punching, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.

Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid

Main Function
1.positive and negative pressure forming device.
2.vacuum forming device.

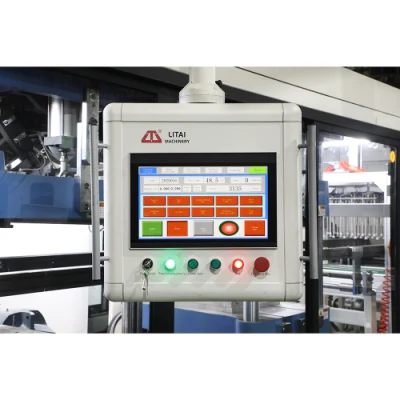

3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.

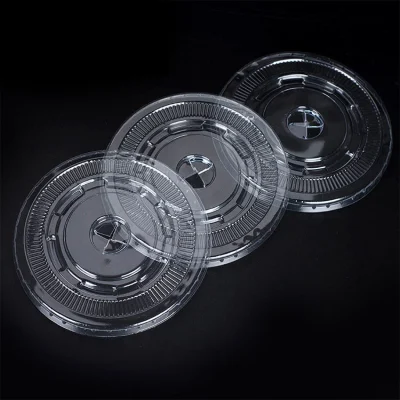

Sample:
Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid



    Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid
    Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid
    SUMMARY OF MACHINE

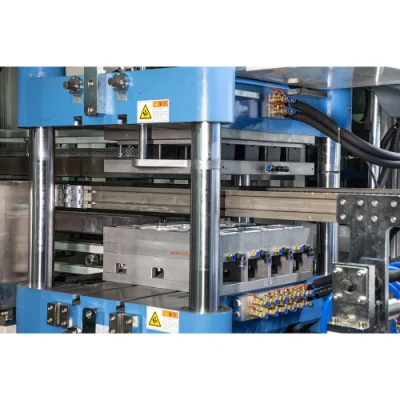

    1.Every station is driven by the eccentric crank linkage structure.
    2.Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
    3.The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
    4.The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1ºC.
    5.There is a rapid mould change device, which shortens the time for mould change extremely.
    6.Each servo motor has overload protection for machine's overworking.
    7.Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
    8.There is an alarm function of the sliding doors.

    Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid
    What is features and advantages of our plastic thermoforming machine?
    1. Fully servo driven machine.no noise.no vibration,thermoforming good and fast.
    2. Fully machine in compact structure,taking small floor space.
    3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
    4. Furnaces automatic removal device, can be turned down at any time during production without breaking the sheet reaching without
    wasting materials.
    5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a
    regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the
    oven roast slices.
    6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable
    in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping
    state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
    7. Auto cutting, auto counting,auto transmission by PLC.
    8. Labor saving, only 1-2 workers packing.

    Company Profile

    Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable LidFully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid
    Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid

    Certificate

    Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid

    Exhibition

    Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid

    Transport Packaging

    Fully Automatic Thermoform Machine for Bagasse Dinner Pancake Packaging Plate Leakage Proof Disposable Lid

    FAQ

    Q1:  Are you a factory or trading company?

     A1: We are a factory, and we export our machines to more than 80 countries since 2001.

    Q2: How long is the warranty period?

    A2: We have a professional QC department in charge of products' quality.

    Q3: How long is the warranty period?

    A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.

    Q4: How to install the machine?

    A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
