Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine

Get the Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine from our factory. High-quality packaging for your products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HTL-420A
Material Type
Grain
Packaging
Bags
Packaging Material
Film
Type Machine
Multi-Function Packing Machine
Machine Material
SS304
Packing Material
All Kinds of Laminated Material
Bag-Making Size
(L)80-400mm, (W)80-250mm
Film Width
180-520mm
Packing Filling
10-2000g(Depend on The Filling Products)
Capacity
25-60bags/Min
Dimension(L*W*H)
(L)1750X(W)1050X(H)1500mm
Machine Weight
750kg
Machine Warranty
Two Year and Longlife Service
Transport Package
Standard Exporting Packing (Whole Wooden Case)
Specification
CE/UL
Trademark
Honetop
Origin
China
HS Code
8428399000
Production Capacity
30 Sets / Month

Product Description

Full automatic small cereal seed rice grain granule 1 kg sugar bag pouch packing machine



It suits to pack various granules, like peanut, sunflower seeds, almonds, chocolate, raisins, rice, nuts, sugar, salt, beans, popcorn, cookies, biscuits, tea, grain, cereal, desiccant, chips etc.

Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine




Kinds of laminated material films
Pillow bags, pillow bags with bottom gusset, quad bags etc

Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine





It's fully automated operation, is improved and the production of a kind of high quality, high performance automatic packaging machine, complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.

Characteristics of this machine:
1.Sever motor (Schneider / France) drawing film , the tension membrane more accurate, faster, more accurate measurement.

2.PLC computer system (Schneider / France), function is more stable , adjust it with any parameters.

3.Touch Screen (Schneider / France): Chinese & English touch screen display, intuitive and simple operation.

4.Independent temperature control system, the precision can be up to + / - 1 degrees.

5.Horizontal and vertical sealing temperature control independently, suitable for all kinds of composite film, PE film packaging materials, etc.

6.Packaging style diversified, back sealing, gusset bag, continuous bags, punching, block bottom bag etc.

7.Simple and fast bag size changeover without tools.

8.Compact small size design, small footprint.

9.Easy to maintain-low maintenance.

10.Work environment quiet, low noise, saving energy.


Main Technical Parameter
Machine Model: HTL-420A
Bag-Making Size Range: (L)80-400mm, (W)80-250mm
Film Width Range: 180mm-520mm
Packing Filling Range: 10g-2000g(Depend on The Filling Products)
Packing Speed Range: 25-60bags/Min
Film Thickness Range: 0.04mm - 0.08mm
Packing Material: Paper. All Kinds of Laminated Material
Power Supply: AC220V 50/60Hz 3.5kw
Air Consumption: 0.36m3/min 0.6MPa
Machine Dimension: (L)1750x(W)1050x(H)2600mm
Machine Weight: 750kg


Product Details

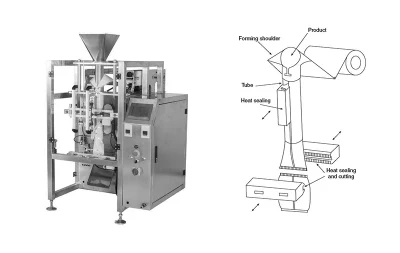

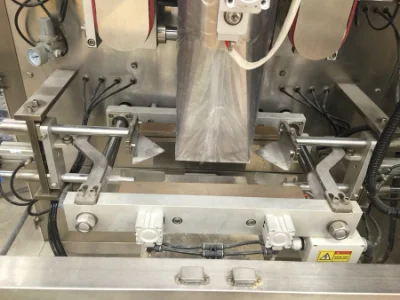

1.Main VFFS Machine

Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine


1. It is used for turning the plastic roll film material into all kinds of packing bag.
2. Multiple bag types can be made by this machine, pillow bag, gusset bag, bag with hanging hole, four sides sealing bag and etc.
3. Main frame and food contact stainless steel 304.
4. English control panel, other languages can be customized.
5. Easy operation, stable, easy maintenance.
6. English manual and operation videos are provided.

1.1.PLC

Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine


1.Language: Standard English and Chinese. Any language can be customized.
2.PLC (for option): Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient and easier.



1.2.Ribbon Coding Printer
Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine

Ribbon Coding Printer (print max. 4 lines, each line has 16 characters)  (If not specified, it print max. 2 lines, each line has 12 characters)

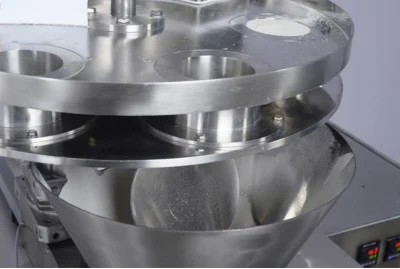

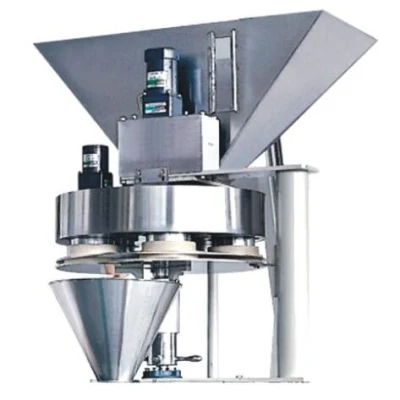

2.Volume Cup metering Filler


Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine



• Suits to fill all kind of granule, like sugar, salt, rice, seeds, beans, desiccant, nuts (cashew, pistachio, almonds, peanuts etc) etc.


2.1.Automatic level sensor
Full Automatic Small Cereal Seed Rice Grain Granule 1 Kg Sugar Bag Pouch Packing Machine


1.Automatic level sensor has when lack of material,save,increase and ensure stable working the functions.
2.Cups are made of stainless steel or Nylon for option.  (If not specified, it's Nylon material)
