Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor

Get the best deals on Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor at Factory Price. We are a reliable factory with high-quality products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Roll To Sheets Process
  • Application
  • Product Parameters
  • Detailed Photos
  • Company Profile
  • Exhibition
  • Packing & Delivery
Overview

Basic Info.

Model NO.
HQJ-BG-1100
Computerized
Non-Computerized
Speed
200 Times/Min
Max Unwinding Width
1100mm
Max Unwinding Diameter
1400mm
Max Unwinding Roll Weight
1500kg
Power
9.5 Kw
Weight
4500 Kgs
Counting Method
Automatic
Advantage
Multiple Function
Min. Cutting Size
A4/A3
Available Material
Paper, Paper-Composite, Label, Plastic Film
Unwinding Quantity
1 Roll, 2 Rolls, 4 Rolls, 6rolls
Material Thickness
70-120 GSM
Power Input
380V,50Hz,3pH
PLC Brand
Panasonic
Cutting Precision
+-0.2mm
Transport Package
Wooden Case
Specification
18500*1900*2100mm
Trademark
Gaobao
Origin
China
HS Code
84411000
Production Capacity
50

Product Description


Product Description

Roll To Sheet  Cutting Machine For Electrical Insulating Paper, Wire-coated Paper, Insulating Thin Paper



Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor
Performances and features
:


This machine adopts servo motor fixed length cutting. Electronic and pneumatic double control, easy operation, high cutting precision, low noise, stable operation. The servo motor uses frequency converter to speed of the machine to keep it running stably. Automatic counting, emergency alarm, shutdown and other intelligent functions. Automatic tension adjustment, deviation correction system, using the fan waste edge automatic discharge.

-With the air shaft unwinding shaft, easily operate and flexible to adapt to various paper tube cores of different sizes.
-Servo motor fixed length high precision cutting, precision up to 0.2mm.
-This machine adopts Gaobao custom motion controller, touch screen adopts Fanyi brand.



Roll To Sheets Process

Loading jumbo roll cutting into sheets based on production requests.

Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor



Application

This machine is specially designed for paper cutting of hamburger paper composite materials, suitable for thin paper with small weight, the weight range is 20-80 grams, if it exceeds this range, you can contact sales Miss Melody for customized solutions.


Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor

Product Parameters



Model HQJ-BG1100 HQJ-BG1400
Max.Width of Master Roll 1100 mm 1400 mm
Max. Diameter of Master Roll 1400mm 1400mm
Max.Width of Master Roll 500mm 500mm
Precision +-0.2mm +-0.2mm
Range of Raw Material Thickness 20-80 gsm 20-80 gsm
Speed 150 times/min 150 times/min
Total Power 16KW 16KW
Overall Size 5400*8600*1840mm 5400*8950*1800mm
Total Weight 4200 KGS 4500KGS
Detailed Photos
Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor

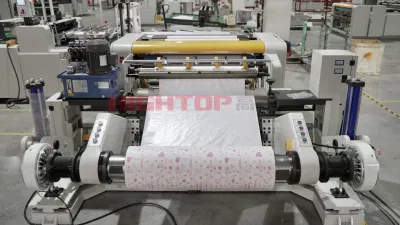

Unwinding Structure

1.Shaftless unwind  stand/ Air Shaft unwinding , 2 options for choosing depend on materials weight feeding and operation efficiency requests. Shaft less is able to loading material rolls automatically. And able to carry max 1.5 tons material easily.
2.Pneumatic
 lifting, easy to control and use.
3.Automatic tension control use megnatic powder tension control, tension adjusted very well.
Magnetic Powder Tension Control
Suitable for different types of materials tension adjustment and making unwinding effect flat.Based on material roll weight unwinding, there are 5 KG 10KG 20KG..for choosing.
Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor
Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor

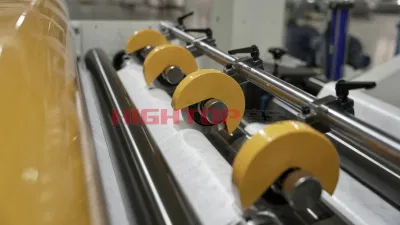

Blade Knife
Suitable for different types of material cutting smoothly and flat in the edge no burr,  The round blade slitting knives made of this steel is very sharp, durable, stable in size, and high in slitting precision.

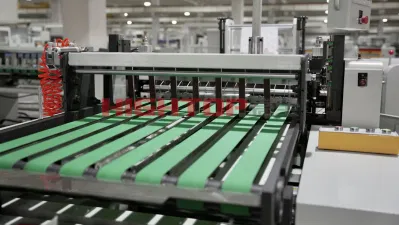

Guillotine Knife
This kind of knife is not easy to wear and tear, and the paper cutting effect is good, and there is no burr
Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor
Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor
Color Tracking Sensor,  Color mark tracking and positioning can well position the printing position with high accuracy, so as to achieve a more ideal cutting effect

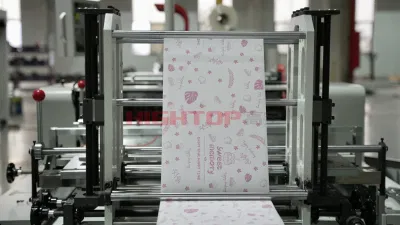

Turning Holder
After the paper roll is cut by a circular knife will be folded as one line with several layers through turning holder then finally cutted by  Guillotine Knife.
Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor

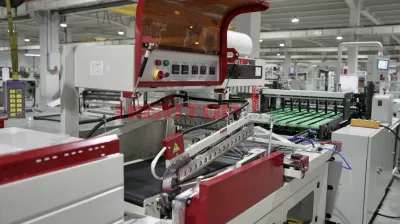

Optional Equipment -----Film Packaging Machine

Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor
Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor





Company Profile

Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor

Zhejiang Gaobao machinery Co., LTD is a professional manufacture of paper and plastic flexible packaging equipment joint-stock company. It is located in Wenzhou,Zhejiang, China (Building 9, No.9-11, Hairun Road, Binhai Development Zone, Pingyang County,Wenzhou City, Zhejiang Province, China.) with superior geographical location and convenient transportation. We are focus on Slitting machine, Crosscutting machine, A4 paper cutting machine, die-cutting machine and other equipment products. With more than 20 years' hard working, we have developed into a integrated company which combine manufacture, sales and service together. Now,Gaobao has abundant technical force, perfect processing system and a sound after-sales service. Learning from domestic and foreign advanced technology, we combine with market demand and bring our advantages into play to develop new packing equipment constantly.These are widely used in roll material processing industry, such as paper, aluminum foil, plastic and so forth. Due to the high degree of automation and excellent quality with competitive price, our products sell very well in domestic. For example, the Sun  Paper, the Five-Star Paper, Kai Lai Paper, Constant Xin Paper products, Nanjing Jinwei Paper,South sugar Paper and other  enterprises, they are our faithful fans. Also, the products have been exported to the America, the Middle East, Africa, Southeast Asia, Europe and other countries and regions.

Exhibition

Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor

Packing & Delivery



Factory Price Mg Paper Hamburger Paper Food Packaging Paper Cutting Machine with Color Sensor
Pre-Sales Service
 * Inquiry and consulting support.
 * Sample testing support.
 * View our Factory.

  After-Sales Service
 * Training how to install the machine, training how to use the machine.
 * Engineers available to service machinery overseas.



FQA:

Pre-sales issues
_____

  01. How to get in touch with us?

Direct to the company: Building 9, No.3-11, Hairun Road, Binhai Development Zone, Pingyang County, Wenzhou City, Zhejiang Province, China.

02. How to answer technical guidance?



For some customers who need non-standard equipment, we will communicate with the company's relevant technical personnel according to the customer's specific requirements, taking into account the technical feasibility and production costs, and give customers solutions.

 03. How to recommend products?



We can provide non-standard equipment production and new product development services according to customer requirements. According to the customer's requirement to be produced, the purpose of the product to be purchased, the environment, the purchase volume and other related conditions, we will recommend several cost-effective products for the customer to choose.



Problems in sale
_____

01. About payment



After signing the contract, 30% of the total payment will be paid in advance, and the factory will accept the payment and pay the full amount of the machine for delivery.

02. About delivery time



About 30-45 working days after receiving the deposit (non-standard machine), the factory will re-decide whether to change the delivery date when the order is confirmed. The standard machine is generally within 30 working days after receiving the deposit.

03. Order tracking



After the customer places an order, our company will send professional personnel to track the order and regularly report the production progress to the customer.

04. Product testing



During the production process, our company will adopt strict inspection process to ensure product quality. Through internal inspection, we ensure that the components produced by our company meet the technical requirements; through external inspection, we ensure that the components produced by our company are not subject to quality problems; and then pass the whole machine inspection to ensure that the mechanical equipment meets the technical production requirements .

05. Product packaging



Before the product is shipped, it will be packed in a strict vacuum plus bottom tray (wooden tray or steel tray)

06. Product Transportation



Products are generally shipped from Ningbo Port, China to the destination port by sea.


After-sales question
_____

01. Shelf life/warranty period of the product



The product warranty period is generally one year, and our company provides lifetime maintenance services. If the machine has quality problems, our company will help the customer to solve it through the following ways: a. Send spare parts to the customer. b. Remotely assist customers in maintenance. c. Notify our agent company to send personnel to the customer's factory for maintenance. d. Our company directly dispatches relevant personnel to the customer's factory for maintenance.

02. About transportation damage



In the process of product transportation, if product damage occurs, it is determined that our product packaging and reinforcement work is not in place, and our company will bear the corresponding losses.

03. About machine maintenance



We will contact customers on a regular basis on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.

04. Problems during use



If there is any problem in the process of using the product, the customer can directly call or send an email to our after-sales department (24-hour hotline). The personnel of our department will respond immediately and make a decision on the response measures within 24 hours.
