Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine

Get the best deals on Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine. We are a reliable factory providing top-quality equipment.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
  • Certifications
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
JF-240Y
Forming Function
Forming, Filling, Seal
Driven Type
Pneumatic
Material Type
Liquid
Packaging
Bag
Packaging Material
Film
Optional
Date Printer
Filling Range
1-100g
Film with
Max 240mm
Control System
Mitsubishi PLC
Certification
CE
Bag Seal
Side Seal, Back Seal
Suitable
Popsicle
Power
1.2kw
Voltage
220V
Transport Package
Export Wooden Case
Specification
625x750x1550mm
Trademark
JINFU
Origin
Guangzhou, China
HS Code
8422303090
Production Capacity
1000set/Month

Product Description

Product Description

Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine
Machine feature:

1.It adopts all stainless steel pump body and plungerpump for metering, which can be adjusted arbitrarily within the rated       metering   range.
2. It can automatically fill liquid and  sticky bodies, and can automatically complete functions such as bag making, metering, filling, sealing, cutting, and batch number printing. Simple operation, accurate bag making, stable and reliable performance.


Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine
Application:
It is suitable for liquid paste materials in food seasoning, beverage, medicine, chemical and other industries.
 Such as  sauce, oil bag, honey, shampoo, cosmetics and other  materials packaging. Applicable packaging materials: paper/  polyethylene  BOPP/PE,  aluminum  foil/PE,  polyester/   aluminized/PE, nylon/PE and other composite materials.

Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine


Product Parameters
Model JF-240Y JF-XFL240Y
Packaging speed 40-60bags/min 40-60bags/min
Measuring range 1-100ml 50-100ml
Bag size L50-180mm W50-120mm L50-180mm W50-120mm
Maximum film width 240mm 240mm
Bag type back side seal/side seal
Air pressure 0.5MPA 0.5MPA
Power voltage 220V/50HZ 220V/50HZ
Power 1.5kw 1.5kw
Weight 220kg 300kg
Dimension L625×W750×H1550 L850×W750×H1750

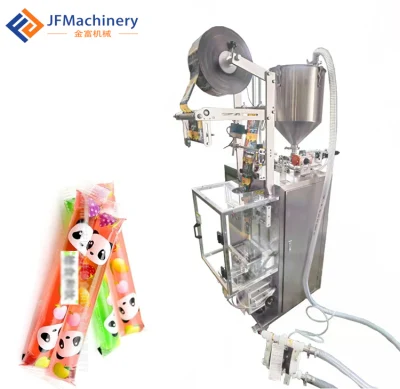

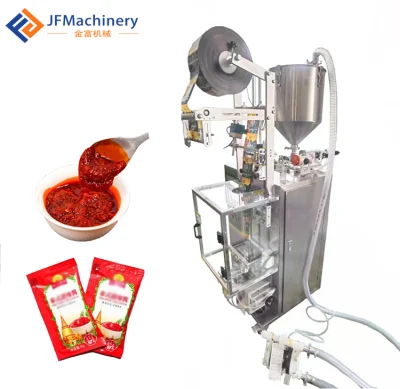

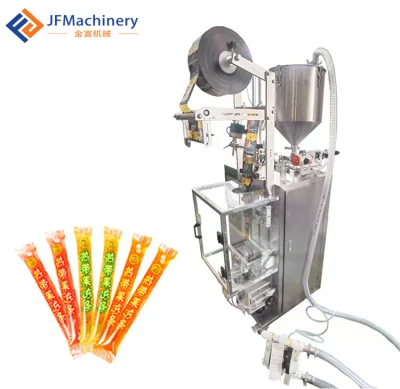

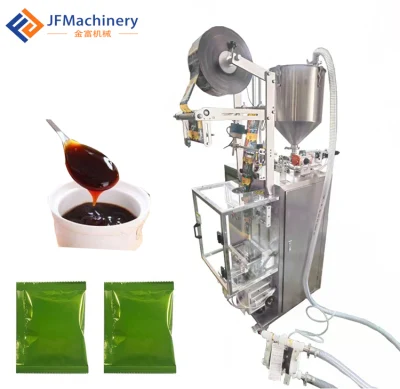

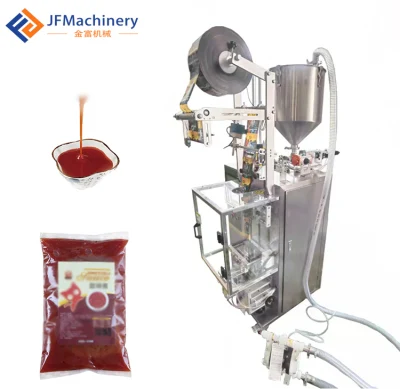

Detailed Photos

Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging MachineFactory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine

Packaging & Shipping

Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine


Company Profile

Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine


Certifications

Factory Price Ice Pop Filling Sealing Machine Liquid Stick Packaging Machine

After Sales Service

1.Online tech support :Manual and videos to support for installing, debugging, operation of the machine, Wechat/ Whatsapp/Email/QQ;
2.Overseas service:Buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD140/day.
3.Warranty period: 1 year, Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller,photocell and blade;
4.Factory would provide all parts on the machine during the whole machine running time;



FAQ

Q: If we have samples of new products, can you help to analysis and design the machine?
A: Yes, Our technical department can help to analysis, design and test the new products you offered.

Q:If we have very special request for the production line,could you help me to do the design?
A: Experienced mechanical designer customized-design provided, support complete production line equipment.

Q: What about your Guarantee of quality?
A: 1 year warranty, all machine part can be replaced for free within this time if broken(not including man made), support after-sale service for the machine lifetime.

Q: We are afraid you won't send us the machine after we send you the money?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q: How can we make sure about the machine quality after we place the order?

A: Before delivery, we will send you the pictures and videos for you to check the quality, you also can arrange for quality checking by yourself.
