Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine

Introducing the Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine. We are a factory dedicated to producing high-quality packaging equipment.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Detailed Photos
  • Our Advantages
  • More Products To Choose
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
DPP-260
Structure
Multifunctional Adjustable Size
Packaging Material
Wood
Packaging Type
Cartons
Usage
Outer, Inner
Type
General
Output
900-1200blibsters/Hour
Max Forming Area
80X105X25mm
PVC Rigid Film
0.15-0.4X110mm
Aluminum Foil
0.02-0.04X110mm
Weight
450kgs
Dimension
2300X560X1410mm
Transport Package
Carton
Specification
2300x560x1410mm
Trademark
URBAN
Origin
China/Zhejiang
HS Code
8422303090
Production Capacity
100set/Year

Packaging & Delivery

Package Size
230.00cm * 56.00cm * 150.00cm
Package Gross Weight
450.000kg

Product Description




Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine DPP-260 is a flat-plate aluminum-plastic blister packaging machine which integrates many functions including PVC feeding, PVC heating, PVC forming, PTP feeding, sealing of PVC and PTP, batch number printing, indentation line making, etc. It is suitable for all kinds of capsules, tablets, sugar coated tablets, honey pills, injections, ampoules, etc. CapsulCN The products have the characteristics of long shelf life, good sealing performance, beautiful appearance, safety and hygiene, conforming to the GMP production standards

Product Parameters

Model
DPP-80
DPP-110
DPP-150
DPP-260
Punch frequency
10-33times/min
10-33tims/min
10-35times/min
6-50times/min
Production capacity
2400plates/hour
2400plates/hour
1200-4200plates/hour
35000-23000pcs/hour
Max. Forming area & Depth
105x70(standard depth <15mm)
115x90(standard depth <15mm)
145xll0(standard depth <15mm)
240x70x26mm
Max. Depth 25mm
Max. depth 26mm
Max. depth 26mm

Standard Stroke range
30-80mm
35-90mm
50-120mm
40-160mm
Standard plate size
80x57mm
80x57mm
80x57mm
80x57mm
Air pressure
0.4-0.6Mpa
0.4-0.6Mpa
0.4-0.6Mpa
0.4-0.6Mpa
Compressed air required
Air compressor>0.3m3/min
Air compressor>0.3m3/min
Air compressor>0.3m3/min
Air compressor>0.3m3/min
Total power supply
220V 50Hz 2.4Kw
220V 50Hz 2.4Kw
220V 50Hz 2.4Kw
380V220v 50Hz 6.2Kw
Main motor
0.75Kw
0.75Kw
1.5KW
1.5KW
PVC hard Film
0.15-0.5xll0mm
0.15-0.5X HOmm
0.15-0.5x 160mm
0.15-0.5x 160mm
PTP Aluminum film
0.02-0.035 x HOmm
0.02-0.035 x HOmm
0.02-0.035 x 160mm
0.02-0.035 x 250mm
Mould cooling
Tap water or Recycling water
Tap water or recycling water
Tap water or recycling water
Tap water or recycling water
Overall Dimension(LxWxH)
1450x590x 1100mm
1600 x 620 x1420mm
2315 x 635 x 1405mm
3000x730x1600mm
Weight
465kg
485kg
890KG
1400kg
Noise
<75dBA
<75dBA
<75dBA
<75dBA

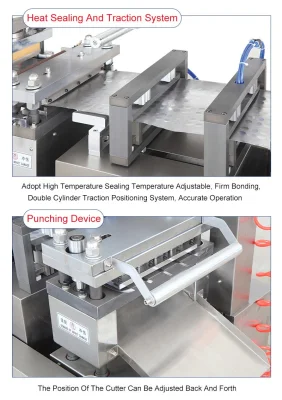

Detailed Photos

Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging MachineDpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging MachineDpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine

Main Features:

1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement. It adopts imported frequency inverter.

3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

Our Advantages

 Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional packaging solution
4. Make a machine layout for customers based on customers' factories.


After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.

More Products To Choose

Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine1.Capsule Polishing Machine                                  2.Tablet Press                                             3.Tablet Blister Packing Machine
Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine4.Capsule/Tablet/Pill/Gummy Counting Line
Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine5.Powder Mixer                                                                6.Strip Packing Machine                                 7.Box Packing Machine

Company Profile

Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine

Packaging & Shipping

Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine

FAQ

Q1:Are you manufacturer or trading company?
A1: We are manufacturer with own factory and exporting department.

Q2: What's the lead time of your machine?
A2: Normally it's about 30~45 working days.

Q3: What's the payment terms?
A3: 30% deposit TT, 70% paid before shipment; or L/C, Western Union.

Q4: Can we check machine before order?
A4: Yes, welcome to visit our factory and check machine anytime.

Q5: Is it difficult to install the machine ?
Q5: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.

Q6: Does the machine power voltage meet buyers' factory power source?
A6: We can do it as your request.
