Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine

Double Chamber Sealing Vacuum Packing Machine for Sausage, Rice, Meat, Fish, and Nuts. Factory direct sales for high-quality packaging solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Type
Double Chamber Vacuum Packing Machine
Object State
Paste, Powdery, Liquid, Solid
Condition
New
Certification
CE
Material
Stainless Steel
Sealing Length
400mm-800mm
Sealing Width
10mm
Minimum Absolute Pressure
1.33kpa
Packing Speed
2-6 Packets/Min
Transport Package
Steel Frame + Wooden Box
Origin
China
HS Code
842240009
Production Capacity
100 Units/Month

Product Description

Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine
Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine
Single chamber vacuum packing machine
Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine

DZ series single chamber vacuum packaging machine is an efficient vacuum packaging equipment, its performance and features include:
1. Increase vacuum chamber design: The equipment adopts the design of increase vacuum chamber, which can handle more food at the same time, thus improving work efficiency.
2. Microcomputer touch button: The device uses microcomputer control technology, easy to operate, the user only needs to pre-compile the required technical parameters to complete the entire vacuum packaging process.
3. All copper transformer: The equipment adopts all copper transformer, which has the advantages of fast heating speed, good sealing effect, firm and no leakage, so as to ensure the quality and safety of packaging products.
Model DZ Series Vacuum Chamber Number Single chamber
Sealing length 260mm-800,mm sealing width 100mm
Packing speed 2-6 packets/min  minimum absolute pressure 1.33kpa

Ton bag vacuum packaging machine
Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine

DZQ series vacuum packaging machine is a multi-functional food packaging equipment, its performance and features include:
1. Double-sided heating temperature controllable: The device adopts double-sided heating design and the heating temperature is controllable to ensure that each position inside the packaging bag can reach the appropriate temperature, thereby improving the effect of vacuum packaging.
2. The head can be adjusted up and down: the head of the equipment can be adjusted up and down according to different sizes of packaging bags to meet the needs of different sizes of packaging, convenient and practical.
3. PLC touch screen control: The device adopts PLC touch screen control technology, simple and convenient operation, the user only needs to touch the screen to complete the entire vacuum packaging process.
4. Three-stage filtration system: The heating chamber of the equipment is equipped with a three-stage filtration system, which can be vacuum packed with particles, powders and other materials, expanding its scope of application.
5. Heating length can be customized: The heating length of the device can be customized, suitable for vacuum packaging of products of different sizes.

This series of machines is widely used in lithium battery materials in the ternary precursor, lithium hydroxide, lithium iron phosphate, graphite and other fine to nano powder raw materials, as well as rare earth, petrochemical, chemical, metallurgy, medicine, pesticide, food, feed particles, large plush toys, fated materials, straw and other plush items in the vacuum packaging needs of the industry.
Model DZQ Series Heat seal pulse power 2000w
Sealing length 800mm Sealing width 100mm
Heat sealing method: Single-channel double-sided instant heating + temperature control temperature control Heat sealing height: 850-1650mm (according to customer demand)
Control mode: Touch screen +PLC control Head lifting mode: Hand wheel control
Number of exhaust nozzle: two Exhaust nozzle stroke: 400mm
Pumping speed: 20m³/h Vacuum degree: -0.08MPa
Filter level: Tertiary dust filtration Filtration accuracy: 5μm
Applicable materials: Aluminum plastic bags, paper plastic bags, PE plastic bags, etc

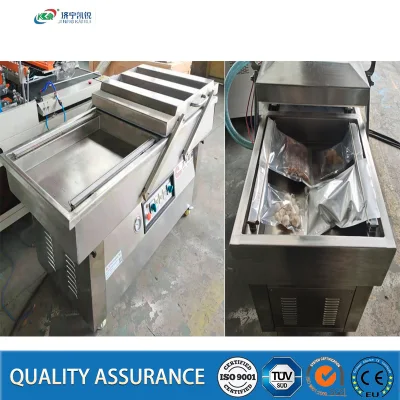

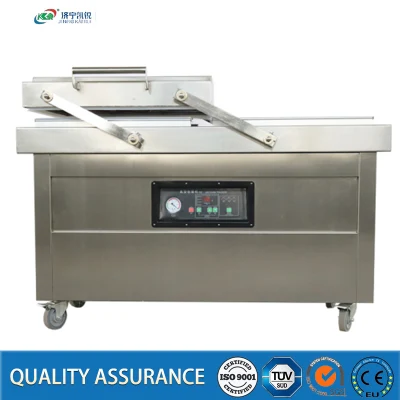

Double chamber vacuum packing machine
Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine

DZ series double chamber vacuum packaging machine is a high performance food packaging equipment, its performance and features include:
1. Large vacuum chamber design: The equipment adopts a large vacuum chamber design, which can handle multiple bags at the same time, thereby improving production efficiency.
2. Microcomputer control operation: The device uses microcomputer control technology, simple and convenient operation, just by touching the screen to complete the entire vacuum packaging process.
3. Dry and wet dual use: The equipment can be dry or wet vacuum packaging, suitable for a wide range.
4. Double vacuum pump design: The device adopts double vacuum pump design, the pumping force is stronger, the air can be discharged faster, and the efficiency of vacuum packaging is improved.
Model DZ Series Vacuum Chamber Number bilocular
Sealing length 400mm-800mm sealing width 10mm
Packing speed 2-6 packets/min  minimum absolute pressure 1.33kpa
Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine
Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine
Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine
Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine Double Chamber Sealing Packaging Sausage Rice Meat Fish Nuts Vacuum Packing Machine FAQ

1: Are you a factory or trading company?
A: As the pictures I show you in above, located in jining city,We mainly produce automatic bagging machine, automatic palletizing machine, vacuum packing machine, ton bag packing machine and some semi-automatic machine, at the same time we can also customize the production line according to your requirements.

2:What's the payment terms?
A: TT transfer,L/C and other payment methods if it is convenient for you.

3:What's the warranty of your equipment?
A:1 year warranty on the machine core after receipt check upon delivery. And we will comprehensively provide you all kinds of technical support service in after-sales.We test every machine manually to make sure they are in good condition before they are sent to your place.

4:What is the service?
7 days 24 hours on line service,engineer overseas service is also available if necessary.

5:What's your advantage? Why we choose you?
A1: We have the most professional techniques and team, we are able to customiz machines according to the customer requirements,which is hardly acquired from other suppliers.
A2:We are a professional manufacturer and warmly welcome clients from worldwide to visit our factory and cooperate with us.
