Custom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing Machine

Get the best Custom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing Machine from our factory. Efficient and reliable packaging solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ZC-D200 Powder
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Powder
Packaging
Bag
Packaging Material
Plastic
Bag Lendth
100-400mm/200-480mm
Bag Width
70-200 / 110-250 / 180-350
Packing Weight
30 - 5kg
Packing Speed
16-60 Bags/Min
Voltage
380V
Total Power
2.3 Kw
Control System
Servo Controller + Touch Screen
Filling System
Auger, Volumetric Cup, Multi Head Scales etc
Packing Materials
PP, PE, PVC, PS, EVA, Pet, PVDC+PVC, OPP+ Composi
Bag Type
Various Premade Bags, Such as Standup Pouch, 4-Sid
Transport Package
Wooden Case
Specification
L1560 * W2300 * H1460mm, 1600kg
Trademark
Zhongchuang
Origin
China
HS Code
8422303090
Production Capacity
50 Sets/Month

Packaging & Delivery

Package Size
156.00cm * 230.00cm * 146.00cm
Package Gross Weight
500.000kg

Product Description

ZC-Premade doypack powder packing machine,it's suitable for weighing and packing powder like chilli powder ,spices powder,coconut powder ,pepper,cocoa powder, milk powder,baking soda,matcha powder,flour,coffee powder calcium salt curry powder ,etc.It's suitable for Various premade bags, such as standup pouch, 4-side sealing bag, zipper bag, handbags, paper bag, gusset bag, spout bag, flat bottom bag and so on.

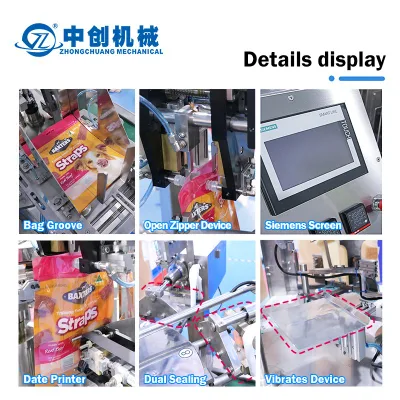

Advantage of ZC Machinery Premade Bags Doypack Machine:

1.Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4.The width of the bag
s could be adjusted by electrical motor.
5.It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
6.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
7.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
8.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.



Custom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing MachineCustom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing MachineCustom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing MachineCustom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing Machine
Model https://www.made-in-china.com/sendInquiry/prod_uQXRezZMbkcn_IFVGuDohhrlU.html?from=shrom&page=home_spot&plant=enZC-D200 / 250 /350
Packing speed 16-60 bags/min
(Depends on packing material & bag type )
Packing bag size Bag Width(mm) :70-200 / 110-250 / 180-350
Bag Length (mm):  100 - 400 mm / 200-480mm
Packing weight 30 - 5kg
Air consumption ≤0.6m³/min
Voltage https://www.made-in-china.com/sendInquiry/prod_uQXRezZMbkcn_IFVGuDohhrlU.html?from=shrom&page=home_spot&plant=en380V
Total power 2.3 kw
Dimensions L1560 * W2300 * H1460mm ( the doypack machine )
Gross weight 1600kg ( Main Machine )
Precision ≤ ±1%
Bag type Various premade bags, such as standup pouch, 4-side sealing bag, zipper bag, handbags, paper bag, gusset bag, spout bag, flat bottom bag, etc.
Packing Materials PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+
 composite CPP etc
Machine Material Main machine body stainless 304, thickness 3mm & 5mm,
 abrasive blasting surface treated, non fingerprint treated.
Filling System Auger, Volumetric Cup, Multi head scales etc
Control System Servo Controller + Touch Screen
Custom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing MachineCustom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing MachineCustom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing Machine
After-sales Services.

1. Manuls / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available
24hours.
3. Zhongchuang engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Zhongchuang has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.


Custom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing MachineCustom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing MachineCustom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing MachineCustom Automatic Rotary Doypack Premade Stand up Spout Pouch Zipper Bag Medicine Curry Multani Mitti Powder Packing Machine
FAQ

Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would liek to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style. Q2: Is engineer available to serve oversea?

Q2:Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q3:How long of the warranty period?
Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
Q4: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q5. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q6. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q7. Can you explain me the whole transaction process?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
