Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding

Upgrade your food packaging process with our Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine. Our factory ensures efficient and reliable product packaging. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Packaging & Shipping
  • Certifications
  • Company Profile
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
MZ-590B
Forming Function
Forming, Filling, Seal
Driven Type
Mechanical
Material Type
Solid
Packaging
Bag
Packaging Material
Plastic
Film Width
Max.590mm
Bag Length
60-320mm
Bag Width
10-200mm
Product Height
Max.130mm
Max Width of Roll Film
Max.320mm
Packing Speed
40-130bag/Min
Voltage
220V,50/60Hz
Machine Size(L*W*H)
2600X600X1700mm
Machine Weight
1000kgs
Packing Sample
Instant Noodle
Motor
Inverter Induction
Power
13.5kw
Packing Film
POF;PVC
Origine
Shanghai
Envelop Dimensions
2600X600X1700mm
Transport Package
Exported Wooden Case Plywood
Specification
MZ-590B
Trademark
MOTECH
Origin
Shanghai
HS Code
8422303090
Production Capacity
200 Pieces/Month

Product Description

Product Description



Automatic Heat Hot Sealing Sealer Shrink Shrinkable Shrinking Film Pack Packer Package Packing Wrap Wrapper Wrapping Machine for shampoo

Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding

1. This machine adopts the technology of Japan and uses all the imported electrical elements. It is a high speed automatic packaging machine which is born in advanced technology and rich experience in Japan.
2.The machine is simple in operation, reliable in quality and stable in performance. With variable frequency modulation number and stepless variable speeds. The control set of the whole machine is completed by PLC, reducing the fault point. High efficient double temperature zone in heat shrink furnace, non-polar speed regulation and automatic temperature control. Efficient hot air circulation for the quality of contraction

Performance Characteristics:
1. Color touch screen control system, driven by three servo motors, easy to operate, high stability, high packaging efficiency and low failure rate; bag length, speed and temperature can be individually adjusted, easy to operate and accurate.
2. Cut-proof safety clutch device,does not damage the packaging.
3.High sensitivity photoelectric eye color standard tracking, mathematically input the sealing position, so as to make the sealing position more accurate.
4.Temperature independent PID control, better suitable for various coating materials.
5. Positioning stop function, no sticking knife, no waste of film.
6. The transmission system is simple, reliable and easy to maintain.
7.Cut the product to be automatically reversed, restart directly after boot convenient operation.
8. Adding refuse recovery device to make the package more beautiful, save about 20% -30% of material compared with traditional folding film packing machine.
9. It is feasible to be equipped with a typewriter or inkjet printer, and it is unnecessary to use manual.
10. It has motor brake control, and the equipment reaction is sensitive.
11. High efficient double temperature zone of heat shrink furnace, high efficient hot air circulation, automatic temperature control, to ensure shrinkage quality.



Applications of the packaging machine:
Applicable for packing various solid regular objects, such as mooncake, bread, biscuits, candies, snow cakes, custard cakes, chocolates, instant noodles, medicines, commodities, hardwares, carton, trays and etc.


Application:

Food: cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc.

Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers, etc.

Hardwares: hinge, stainless steel pipe, bearings , screw, nuts and washer, etc

Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.

Stationary: pencil, eraser, notebook, paper card, adhensive tape, etc.

Electric Products: battery, usb cable, earphone, user manual and accessories in one set.

Medical: face mask, glove, gauze, capsule, disposable syringe, etc.

Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, gift, cups, bottles, napkin, baby diaper, etc.

Skin packaging in groups of food, pharmaceuticals and beverages, instant bowl noodles, milk tea cups, mosquitoe coils, wall paper,filters, electrical switches, batteries,plastic wraps, garbage bags,tissue-paper,kitchen seasoners,various sizes of cartons and boxes, stationeries,pressworks,hardwares, industrial parts, cosmetics and other commodities.
Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding



Product Parameters

TECHNOLOGICAL PARAMETER


 Max Flim size                          ≤590mm
Model 120 150 180 210
Packing size L :Bag length L:60mm-320mm L:100mm-450mm L:150mm-530mm L:180mm-600mm
W:width w:10mm-200mm w:10mm-200mm w:10mm-200mm w:10mm-200mm
H:height H:5mm-35mm H:35mm-70mm H:65mm-100mm H:80mm-130mm
Packing speed 30-150(pack / min) 30-150(pack / min) 30-135(pack / min)) 30-100(pack / min)
 Flim type PVC;POF
Power consumption Packaging machine:4.75KW;Shrinking machine:13.5KW
Power supply Packaging machine:220V,50HZ/60HZ;Shrinking machine:380V,50HZ/60HZ
Envelop dimensions  4800x1170x1500mm
 Shrinking machine Dimensions:2600x600x1700mm Furnace channel size:2300*250*200mm
 Weight Packaging machine:1000KG Shrinking machine:600KG



(1)Date printer
Function: It can print Manufacture date,Expiration date and Batch number on the bag
Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding

6. Size drwaing:

Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding
Main Electrical Brand
Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding
1.PLC                                    Panasonic from Japan
2.Inverter                                 Panasonic from Japan
3.Close to Switch                    Omron from Japan
4.Switch Button                       Sch-neider from German
5.Terminals                              Wade Miller from German
6.Display Screen                      WeiLun from TaiWan
7.Motor                                   Jiangcheng from Guangdong
8.Photocell                               Yetai from Taiyan
9.Temperature Control List        O-mron from Japan
10.Pushbutton Switch                Sch-neider from German
11.Power                                  Ming Wei from Taiwan
12.Solid State Relay                  Sch-neider from German
13.Intermediate Relay               O-mron from Japan
14.Two Wire Switch                   Sch-neider from German

Detailed Photos

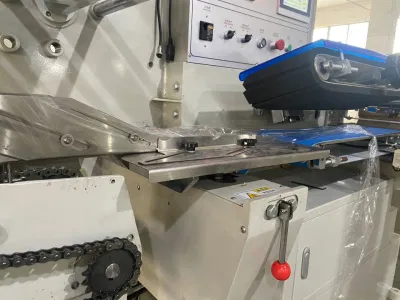

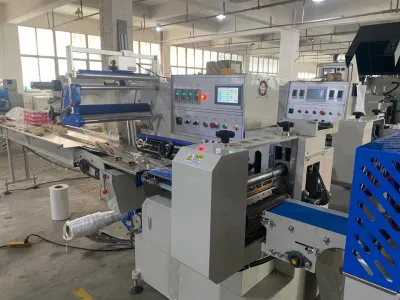

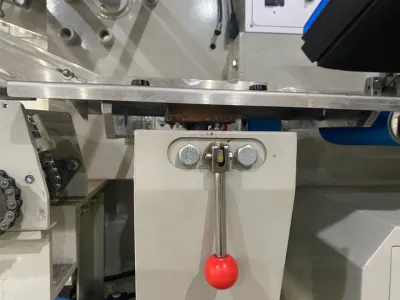

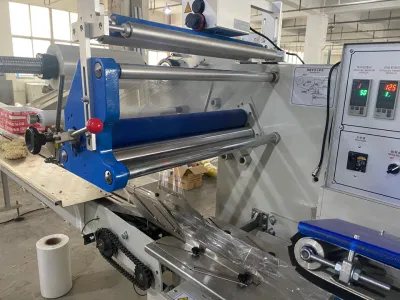

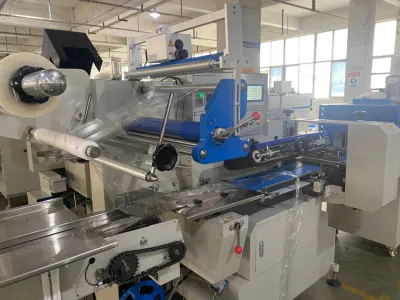

Machine Details:


Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products FeedingAutomatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding









9. Spart PartsS
1. Three  pushers
2. A Mid-seal belt
3. A solid-state relay
4. Two heating tubes
5. One set tools
6. User manuels
7.Four foot cups
8.One set power cable.






Packaging & Shipping




11. Packing Method
Exporting Wooden Cases: 1 machine with 2 wooden boxes

Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding


12.Our  Client :

Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding

Certifications



Our Certification:

Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding
Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding



Company Profile




About US:

SME is a leading manufacturer in the field of front-of-line packaging devices since
2008. In the past 10 years, MOTECH has targeted on the technology development, precise manufacturing, professional marketing, satisfied technical support and OEM solutions. We offer Flow Packing Machine;Vertical Packing Machine;Metal Detector;Weight Checker  and Weighter to fit the needs of different industries.


Due to continuous efforts in the field of end-of-line packaging devices, MOTECH  Machinery was honored to obtain CE certificate and ISO 9001 certificate showed our emphasis on safety ,quality and has a successful sale in Asia, American, Africa and so on. MOTECH looks forward to establishing a long-term and mutual beneficial partnership with more agents or distributors all over the world. Moreover, We provide the OEM solution based on strict quality control for famous companies in Japan, USA etc.

In the future, MOTECH Machinery will keep to provide customers:
-Quality machines
-Competitive price
-Satisfied service

Our Team:
Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding

Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding Automatic Horizontal Biscuits Bread Burgers Buns Cake Wafer Food Wrapping Packaging Packing Line Machine with Inner Container and Products Feeding



After Sales Service

Pre-sales service:

1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.

2.We will fist check customer's goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.

3.We will recommend and offer machine according to customer's use and purchase budget.

In-sale service:

1.We will supply each manufacturing step photo for customer checking on time.

2.We will prepare packing and shipment according to customer's needing in advance.

3.Testing the machine and making video for customer's checking.

After-sale service:

1.We will guarantee the machine quality for 1 years.

2.We provide free training and answer customer's question on technology in time.

FAQ

1. What about your pillow packing machine quality?

Our factory has 10 years experience in mechanical processing; all our machines already get ISO9001, SGS

certificate, CE certificate; already exported into many countries and areas; already got customer's good reputation.

2. What about your pillow packing machine price?

Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!

3.Can you send me the video to show how the pillow packing machine work?

Certainly, we have made video of every machine and uploaded them by our chain address.Pls. contact with us, we will send you machine video.

4.What about your installation service and sales service for pillow packing machine?

1>Guarantee is two year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.

2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.

3>It is free to train your worker in our factory or in your side or by video.
