Automatic Form Fill Seal Film Thermoformer Vacuum Packaging Machine

Get high-quality automatic form fill seal film thermoformer vacuum packaging machines directly from our factory. Streamline your packaging process now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
EW420
Material Type
All
Packaging
Tray/Bag/Sachet/Pouch
Packaging Material
Film
Other Functions
Vacuum, Gas Flushing, Map, Skin Packing
Certificates
Ce, ISO9001
Transport Package
Strong Wooden Box
Trademark
BEIER
Origin
Shandong, China
HS Code
8422
Production Capacity
500 Sets/Year

Product Description

It is also named continuous film stretch vacuum MAP packing machine by Chinese people.The equipment consists of two types of working chamber:Thermoforming chamber&Heat sealing chamber.The package materials are aluminium foils or a variety of films:transparent or opaque, printed or unprinted,flexible or rigid.They will become soft and be shaped as per the die shape under heating and air pressure(positive&negative) in the forming chamber,some cases an auxiliary mould(plug) will assist the shaping process.There are two types of films/foils:Top film&bottom film according to their usages in the packing process.Generally,film thermoforming refers to the bottom film,top film is the cover.Top&bottom films will be sealed together in the heat sealing chamber. To get a more beautiful and triaxial vision of the package, the top films also can be shaped into some different shapes,it is call 'Top Film Thermoforming'.The whole process is under precisely control of PLC,continuously and automatically.

Full automatic film thermoforming machine,forming,filling & sealing & cutting.

Technic Datas:

Model LZ320 LZ420 LZ520
Width of top film 296mm 396mm 496mm
Width of bottom film 322mm 422mm 522mm
Chamber sizes 300 x (200-400) mm 400 x (200-400) mm 500 x (200-600) mm
Maximum forming depth 80mm 80mm 80mm
Producing capacity 1000-11000 pcs/h 1800-16000 pcs/h 2400-18000 pcs/h
Vacuum ≤200Pa ≤200Pa ≤200Pa
Compressed air ≥0.6MPa ≥0.6MPa ≥0.6MPa
Cooling water ≥0.15MPa ≥0.15MPa ≥0.15MPa
Power supply 380V/50HZ 380V/50HZ 380V/50HZ
Power rate 7 KW 12 KW 14 KW
Dimension 4500mm X 710mm X 1780mm  7000mm X 900mm X 1800mm  8000mm X 1000mm X 1800mm
Weight 1300kg 2200kg 2800kg
Pumping rate   60~100 m³/H   160~200 m³/H   300 m³/H
Working speed 5-7 step/min 4-6 step/min 4-5 step/min
Free mould 2 sets 2 sets 2 sets


Automatic Form Fill Seal Film Thermoformer Vacuum Packaging Machine

One year warranty for any compoments of the whole machine.
20 years professional manufacturing,best quality,best services.

**************************************************************************************
Edison Zhao/Trade manager
Zhucheng Beier Automatic Equipments Factory
Yangjialing Industrial Park, Mizhou District, Zhucheng city, Shandong,China

**************************************************************************************

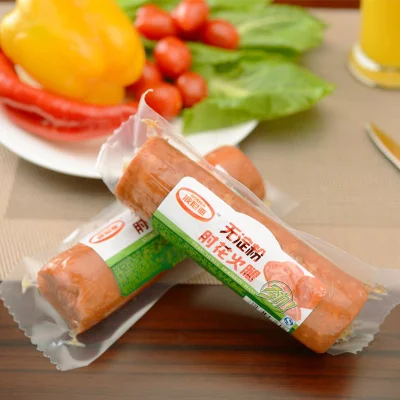

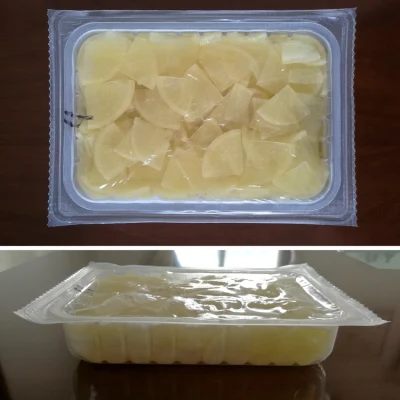

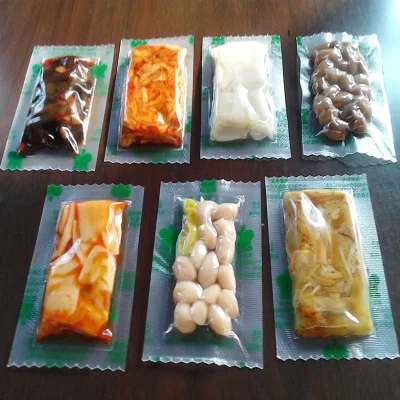

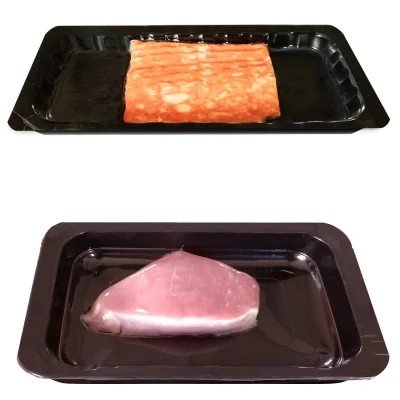

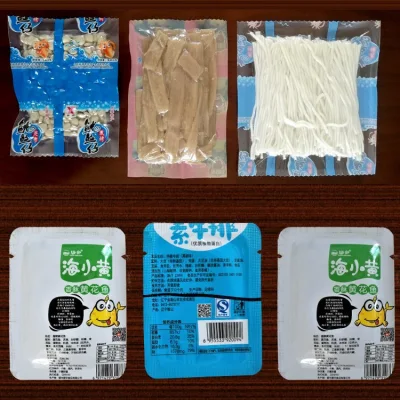

Packing Samples:
       Automatic Form Fill Seal Film Thermoformer Vacuum Packaging Machine
Automatic Form Fill Seal Film Thermoformer Vacuum Packaging Machine


Automatic Form Fill Seal Film Thermoformer Vacuum Packaging Machine

Automatic Form Fill Seal Film Thermoformer Vacuum Packaging Machine
Automatic Form Fill Seal Film Thermoformer Vacuum Packaging Machine
Automatic Form Fill Seal Film Thermoformer Vacuum Packaging Machine
